TH005-02

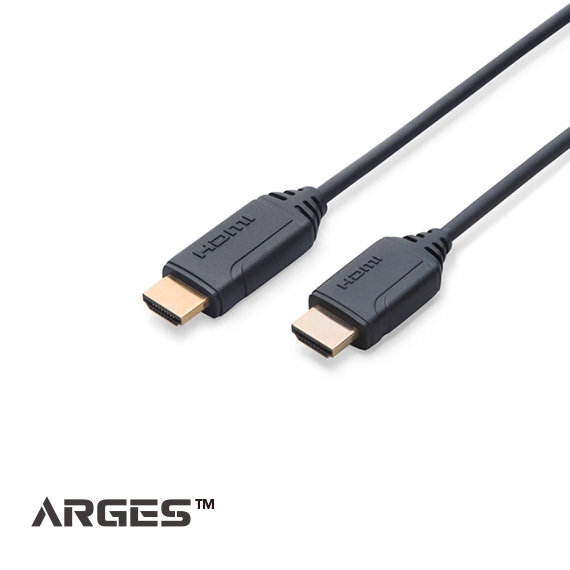

Active High Speed HDMI® Cable with Ethernet
UP TO 20M
DESCRIPTIONS
To provide a flexible application for A/V installation, Elka developed a new active High Speed HDMI® cable. Compared with the previous version, it is thinner and longer. It also can be used with an extra adapter with power as its source consumes more power, such as Apple TV 4K.
More specially, it was built-up with a retiming chip, which can fine-tune the signal of the output device so as to optimize the image quality. This is the best way to extend 4K experiences for consumers and enterprises.
More specially, it was built-up with a retiming chip, which can fine-tune the signal of the output device so as to optimize the image quality. This is the best way to extend 4K experiences for consumers and enterprises.
FEATURES
• Supports resolutions up to 4K (4096×2160/ 3840×2160) @ 60 Hz
• Embedded with a retiming chip – Fine-tunes and optimizes image quality
• AC Coupling - Makes an input signal level to avoid screen flicker and jitter
• Wide frequency range: 25MHz-600MHz
• ESD protection: up to 6KV (HBM)
• Aadapter with power (optional)
• Embedded with a retiming chip – Fine-tunes and optimizes image quality
• AC Coupling - Makes an input signal level to avoid screen flicker and jitter
• Wide frequency range: 25MHz-600MHz
• ESD protection: up to 6KV (HBM)
• Aadapter with power (optional)
APPLICATIONS
• 4K HD TVs, Monitors, or Projectors
• 4K video players, gaming systems, and displays
• Apple TV 4K (an optional adapter with power is needed)
• 4K video players, gaming systems, and displays
• Apple TV 4K (an optional adapter with power is needed)
| ITEM | CONTENT | ||||
| Length | 7M | 10M | 40ft | 15M | 20M |
|---|---|---|---|---|---|
| Product Model (P/N) | HDSC001AAA-XXX | HDSC001AAA-XXX | HDSC001AAA-XXX | HDSC001AAA-XXX | HDSC001AAA-XXX |
| Resolution Rate | 4K2K@60 (4:4:4) | 4K2K@60 (4:4:4) | 4K2K@60 (4:4:4) | 4K2K@60 (4:4:4) | 4K2K@60 (4:4:4) |
| Wire Gauge | 34AWG | 30AWG | 28AWG | 26AWG | 24AWG |
| Plug 1 & 2 | HDMI Type A (Gold Plated) | HDMI Type A (Gold Plated) | HDMI Type A (Gold Plated) | HDMI Type A (Gold Plated) | HDMI Type A (Gold Plated) |
| Compliance | HDMI 2.0 specification | HDMI 2.0 specification | HDMI 2.0 specification | HDMI 2.0 specification | HDMI 2.0 specification |
| Certification | UL CL2 Certified | UL CL2 Certified | UL CL2 Certified | UL CL2 Certified | UL CL2 Certified |
